In-Class Exercise 6

In this exercise, we will explore Emerging Hot Spot Analysis (EHSA), a spatio-temporal analysis method for identifying and categorizing hot and cold spot trends over time in a spatial dataset.

Author

Teng Kok Wai (Walter)

Published

September 30, 2024

Modified

October 2, 2024

1 Exercise Reference

ISSS626 Geospatial Analytics and Applications – In-class Exercise 6: Emerging Hot Spot Analysis

2 Overview

In this exercise, we will explore Emerging Hot Spot Analysis (EHSA), a spatio-temporal analysis method for identifying and categorizing hot and cold spot trends over time in a spatial dataset.

3 Learning Outcome

  • Load and install R packages for spatio-temporal analysis.
  • Create a space-time cube using geospatial and temporal data.
  • Calculate Gi* statistics and use the Mann-Kendall test to detect monotonic trends.
  • Perform Emerging Hot Spot Analysis using spatio-temporal data.
  • Visualize the results of EHSA with spatial and temporal trends.

4 Import the R Packages

The following R packages will be used in this exercise:

Package Purpose Use Case in Exercise
sf Handles spatial data; imports, manages, and processes vector-based geospatial data. Importing and managing geospatial data, such as Hunan’s county boundary shapefile.
sfdep Provides functions for spatial autocorrelation and temporal analysis, including Emerging Hot Spot Analysis (EHSA). Performing spatio-temporal analysis using Gi* statistics and Mann-Kendall test.
plotly Creates interactive plots in R. Visualizing spatio-temporal trends with interactive plots.
tidyverse A collection of R packages for data science tasks like data manipulation, visualization, and modeling. Wrangling aspatial data and joining it with geospatial datasets.
Kendall Provides functions for performing the Mann-Kendall test for detecting trends in time series data. Performing the Mann-Kendall test to assess the trends in Gi* statistics over time.

To install and load these packages, use the following code:

pacman::p_load(sf, sfdep, tmap, plotly, tidyverse, Kendall)

5 The Data

The following datasets will be used in this exercise:

Data Set Description Format
Hunan A geospatial dataset containing Hunan’s county boundaries. ESRI Shapefile
Hunan_GDPPC A CSV file containing GDP per capita data of Hunan from 2000 to 2012. CSV

Similar to hands-on exercises, import the datasets accordingly:

hunan <- st_read(dsn = "data/geospatial",
                 layer = "Hunan")
Reading layer `Hunan' from data source
  `/Users/walter/code/isss626/isss626-gaa/In-class_Ex/In-class_Ex06/data/geospatial'
  using driver `ESRI Shapefile'
Simple feature collection with 88 features and 7 fields
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 108.7831 ymin: 24.6342 xmax: 114.2544 ymax: 30.12812
Geodetic CRS:  WGS 84
GDPPC <- read_csv("data/aspatial/Hunan_GDPPC.csv")

6 Creating a Time Series Cube

Note

Relevant Reading Material: spacetime and spacetime cubes • sfdep

A space-time cube represents spatio-temporal data, combining location and time to study trends, often used for identifying patterns like hot spots. It is popular for its ability to handle large datasets, and it is available in ArcGIS.

In R, it can be implemented for free using libraries like sfdep. The implementation in R follows tidyverse principles.

Constraints: - Spatial locations (geometry) must be static. - Time and data values can be dynamic.

Good for:

  • Tracking consistent locations over time (e.g., temperature changes in cities where admin boundaries are static).

Not ideal for:

  • Events where boundaries shift, like forest fires, where the area or size of the fire evolves.

To create a spatio-temporal cube:

GDPPC_st <- spacetime(GDPPC, hunan,
                      .loc_col = "County",
                      .time_col = "Year")

And it is always good to verify that we created a valid spacetime_cube object.

is_spacetime_cube(GDPPC_st)
[1] TRUE

7 Computing Gi*

Next, we will compute the local Gi* statistics.

7.1 Deriving the spatial weights

To identify neighbors and to derive an inverse distance weights:

Tip
  • activate("geometry"): Activates the geometry context for spatial operations.
  • mutate(): Adds two columns:
    • nb: Neighbors, including the observation itself (include_self), using spatial contiguity (st_contiguity).
    • wt: Weights, calculated with inverse distance (st_inverse_distance).
  • set_nbs() and set_wts(): Copies neighbors and weights to all time-slices. Ensure row order consistency after using these functions.
GDPPC_nb <- GDPPC_st %>%
  activate("geometry") %>%
  mutate(nb = include_self(
    st_contiguity(geometry)),
    wt = st_inverse_distance(nb,
                             geometry,
                             scale = 1,
                             alpha = 1),
    .before = 1) %>%
  set_nbs("nb") %>%
  set_wts("wt")

Note that this dataset now has neighbors and weights for each time-slice.

To calculate the local Gi* statistic for each location:

  1. Group by Year: This ensures we calculate Gi* separately for each year in the dataset.
  2. Use local_gstar_perm(): This function computes the local Gi* statistic using the GDPPC values, neighbors (nb), and weights (wt).
  3. Unnest the Gi* results: The gi_star column is nested, so we use unnest() to extract the results into a clean format.
gi_stars <- GDPPC_nb %>%
  group_by(Year) %>%
  mutate(gi_star = local_gstar_perm(
    GDPPC, nb, wt)) %>%
  tidyr::unnest(gi_star)

8 Mann-Kendall Test

Important

A monotonic series or function is one that only increases (or decreases) and never changes direction. So long as the function either stays flat or continues to increase, it is monotonic.

\(H_0\): No monotonic trend

\(H_1\): Monotonic trend is present

Interpretation

  • Reject the null-hypothesis null if the p-value is smaller than the alpha value (i.e. 1-confident level)
  • Tau ranges between -1 and 1 where:
    • -1 is a perfectly decreasing series, and
    • 1 is a perfectly increasing series.

Refer to Mann-Kendall Test For Monotonic Trend

8.1 Mann-Kendall Test on Gi

To evaluate trends in Gi* measures over time using the Mann-Kendall test for a specific location, like Changsha county:

Filter data for Changsha:

cbg <- gi_stars %>%
 ungroup() %>%
 filter(County == "Changsha") %>%
 select(County, Year, gi_star)

Plot the Gi* values over time using ggplot2:

p <- ggplot(data = cbg,
       aes(x = Year,
           y = gi_star)) +
  geom_line() +
  theme_light()

ggplotly(p)

To print Mann-Kendall test report:

cbg %>%
  summarise(mk = list(
    unclass(
      Kendall::MannKendall(gi_star)))) %>%
  tidyr::unnest_wider(mk)
# A tibble: 1 × 5
    tau      sl     S     D  varS
  <dbl>   <dbl> <dbl> <dbl> <dbl>
1 0.485 0.00742    66  136.  589.
Note

Observations:

In the above result, sl is the p-value. With reference to the results, we will reject the null hypothesis and infer that a slight upward trend.

8.2 Mann-Kendall test data.frame

To replicate this for each location by using group_by() of dplyr package:

ehsa <- gi_stars %>%
  group_by(County) %>%
  summarise(mk = list(
    unclass(
      Kendall::MannKendall(gi_star)))) %>%
  tidyr::unnest_wider(mk)
head(ehsa)
# A tibble: 6 × 6
  County        tau        sl     S     D  varS
  <chr>       <dbl>     <dbl> <dbl> <dbl> <dbl>
1 Anhua      0.191  0.303        26  136.  589.
2 Anren     -0.294  0.108       -40  136.  589.
3 Anxiang    0      1             0  136.  589.
4 Baojing   -0.691  0.000128    -94  136.  589.
5 Chaling   -0.0882 0.650       -12  136.  589.
6 Changning -0.750  0.0000318  -102  136.  589.

And sort to show significant emerging hot/cold spots:

emerging <- ehsa %>%
  arrange(sl, abs(tau)) %>%
  slice(1:10)
head(emerging)
# A tibble: 6 × 6
  County        tau         sl     S     D  varS
  <chr>       <dbl>      <dbl> <dbl> <dbl> <dbl>
1 Shuangfeng  0.868 0.00000143   118  136.  589.
2 Xiangtan    0.868 0.00000143   118  136.  589.
3 Xiangxiang  0.868 0.00000143   118  136.  589.
4 Chengbu    -0.824 0.00000482  -112  136.  589.
5 Dongan     -0.824 0.00000482  -112  136.  589.
6 Wugang     -0.809 0.00000712  -110  136.  589.

9 Performing Emerging Hotspot Analysis

To perform Emerging Hotspot Analysis (EHSA), we can use the emerging_hotspot_analysis() function from the sfdep package. This function analyzes spatio-temporal trends by detecting areas that are hotspots over time. It takes the following parameters: - x: The spacetime object (e.g., GDPPC_st). - .var: The variable of interest (e.g., "GDPPC"). - k: Number of time lags (default is 1). - nsim: Number of simulations to run (e.g., 99).

set.seed(1234)
ehsa <- emerging_hotspot_analysis(
  x = GDPPC_st,
  .var = "GDPPC",
  k = 1,
  nsim = 99
)
ehsa
# A tibble: 88 × 4
   location     tau    p_value classification
   <chr>      <dbl>      <dbl> <chr>
 1 Anxiang    0.221 0.232      sporadic coldspot
 2 Hanshou    0.147 0.434      sporadic hotspot
 3 Jinshi     0.441 0.0151     oscilating hotspot
 4 Li        -0.824 0.00000482 sporadic coldspot
 5 Linli      0.118 0.537      oscilating hotspot
 6 Shimen    -0.471 0.00946    oscilating coldspot
 7 Liuyang    0.868 0.00000143 sporadic hotspot
 8 Ningxiang -0.559 0.00201    sporadic coldspot
 9 Wangcheng -0.162 0.387      sporadic coldspot
10 Anren      0.456 0.0120     sporadic coldspot
# ℹ 78 more rows

9.1 Visualising the Distribution of EHSA classes

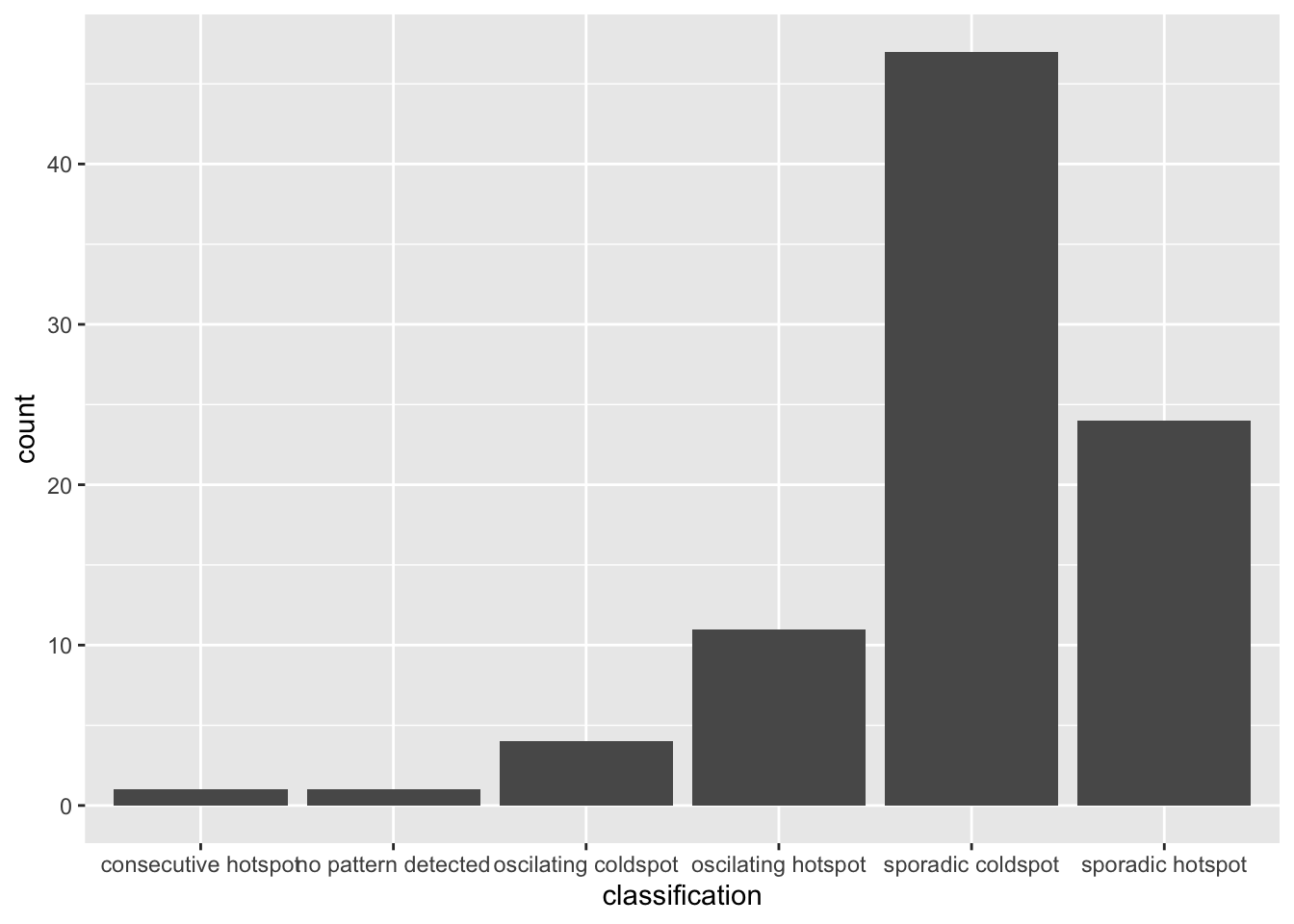

To visualize the EHSA classification distribution using a bar chart with ggplot2:

ggplot(data = ehsa, aes(x = classification)) +
  geom_bar()

The bar char shows that sporadic cold spots class has the high numbers of county.

Important

Note that in the above plot, we did not filter for statistically significant EHSA results, which may be misleading for our analysis

To filter for statistically significant EHSA results, we should focus on locations where the p_value is below a threshold (< 0.05).

ehsa_significant <- ehsa %>%
  filter(p_value < 0.05)

ggplot(data = ehsa_significant, aes(x = classification)) +
  geom_bar()

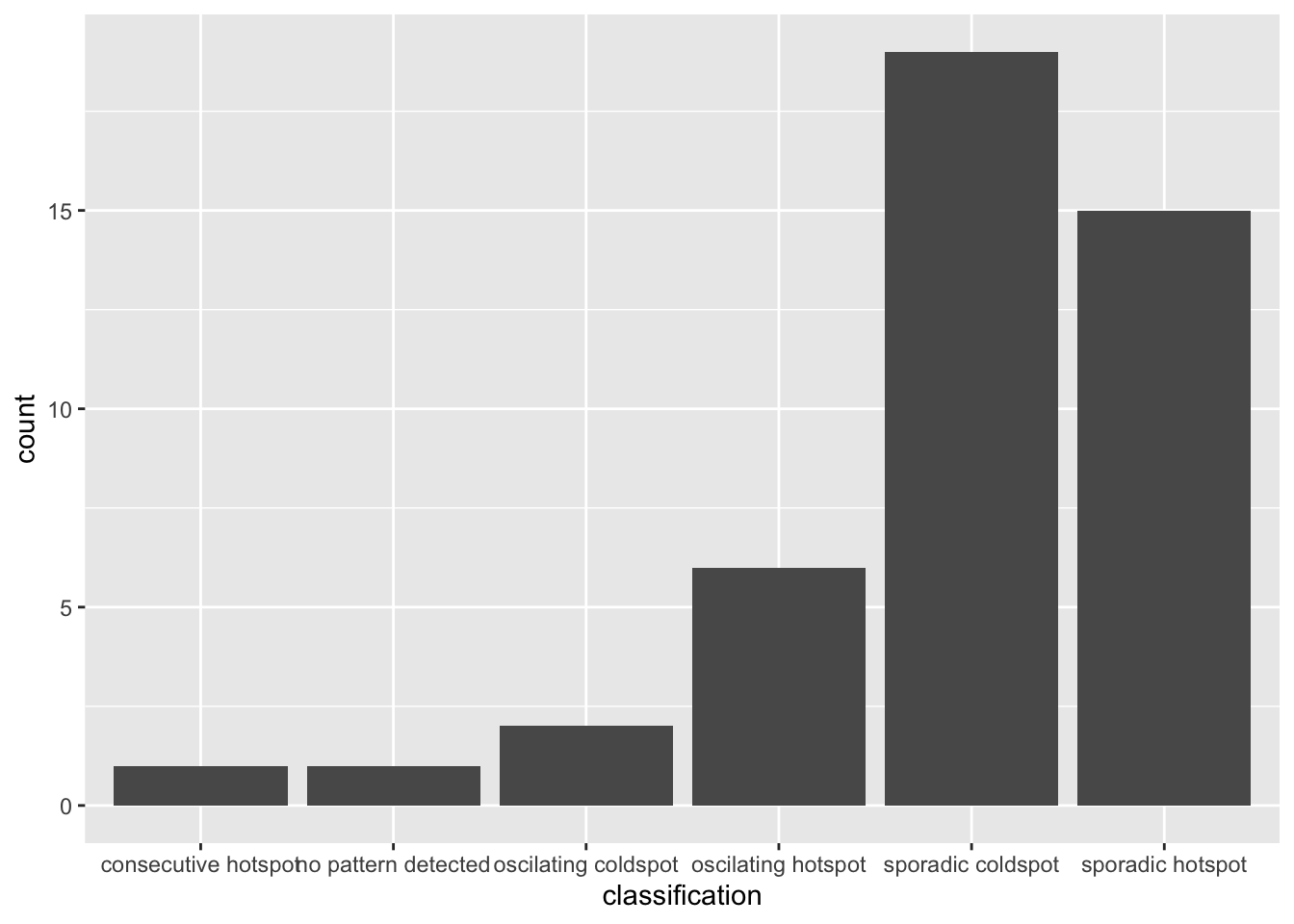

This will display a bar chart showing the distribution of EHSA classes for locations with statistically significant results. Note that the distribution is similar, but the magnitude is smaller after filtering.

9.2 Visualising EHSA

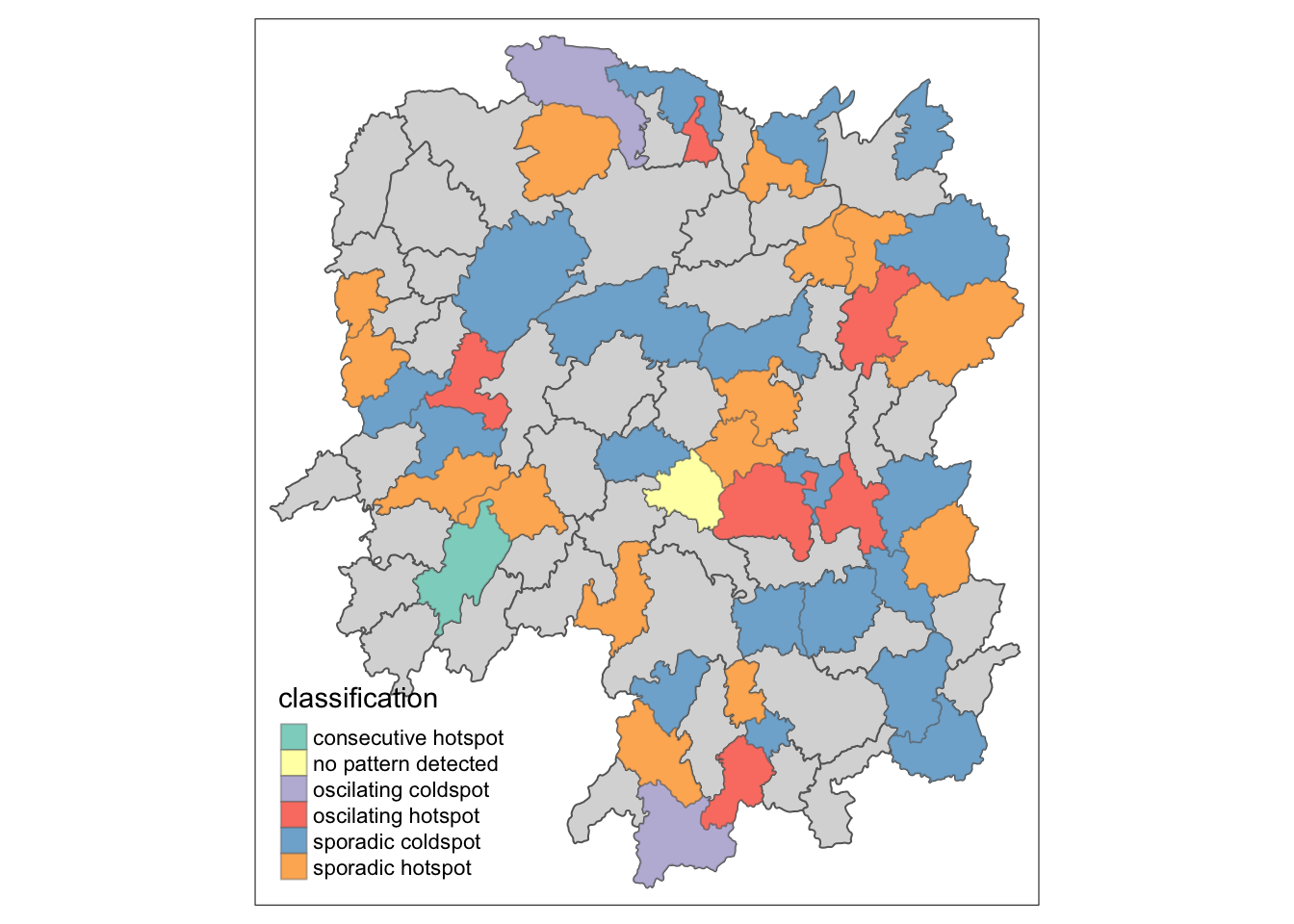

To visualise the geographic distribution EHSA classes, we need to join both hunan and ehsa together before creating the plot. Note that in this case, we have filtered for statistically significant results.

hunan_ehsa <- hunan %>%
  left_join(ehsa,
            by = join_by(County == location))

ehsa_sig <- hunan_ehsa  %>%
  filter(p_value < 0.05)
tmap_mode("plot")
tm_shape(hunan_ehsa) +
  tm_polygons() +
  tm_borders(alpha = 0.5) +
tm_shape(ehsa_sig) +
  tm_fill("classification") +
  tm_borders(alpha = 0.4)

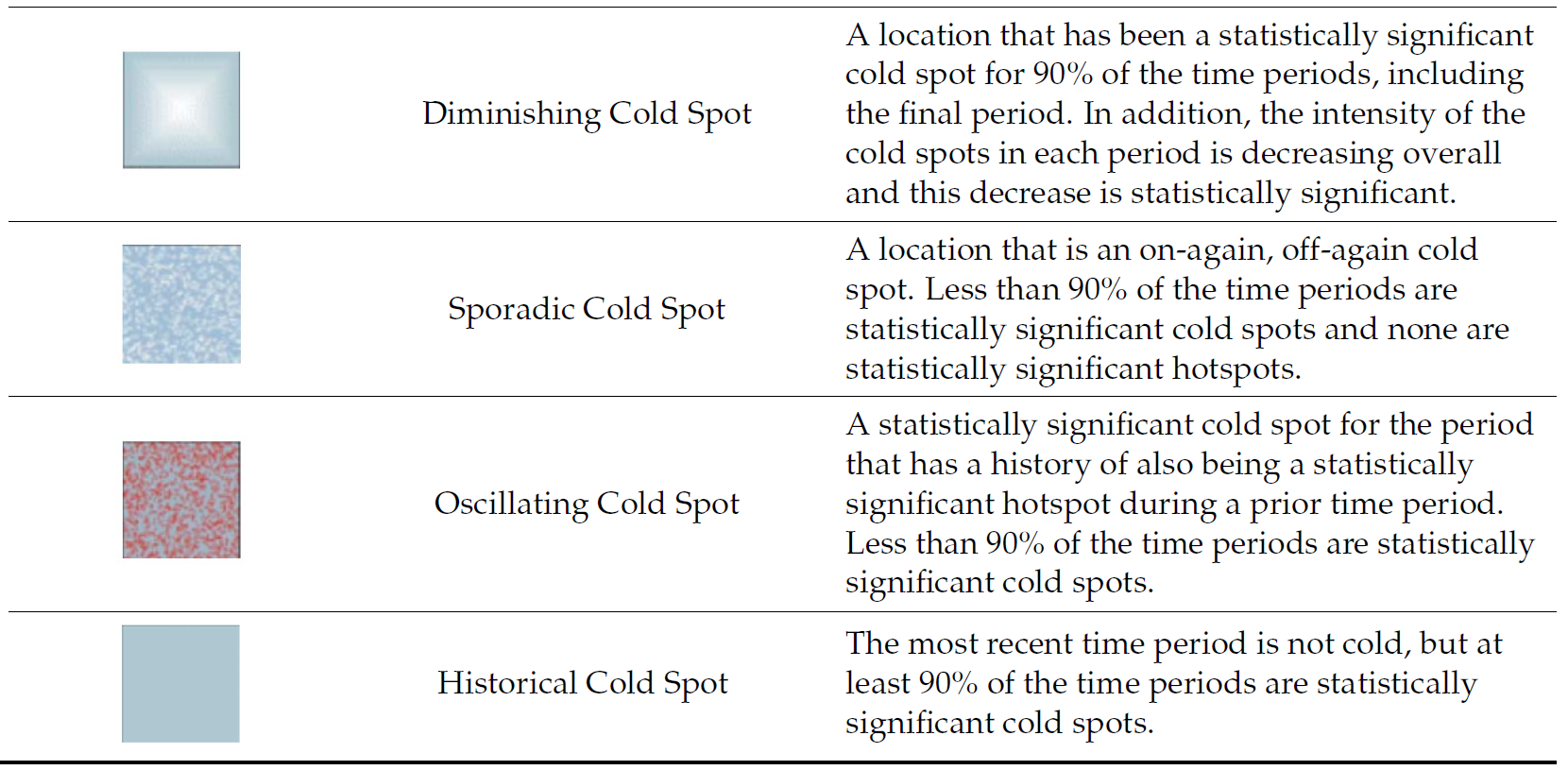

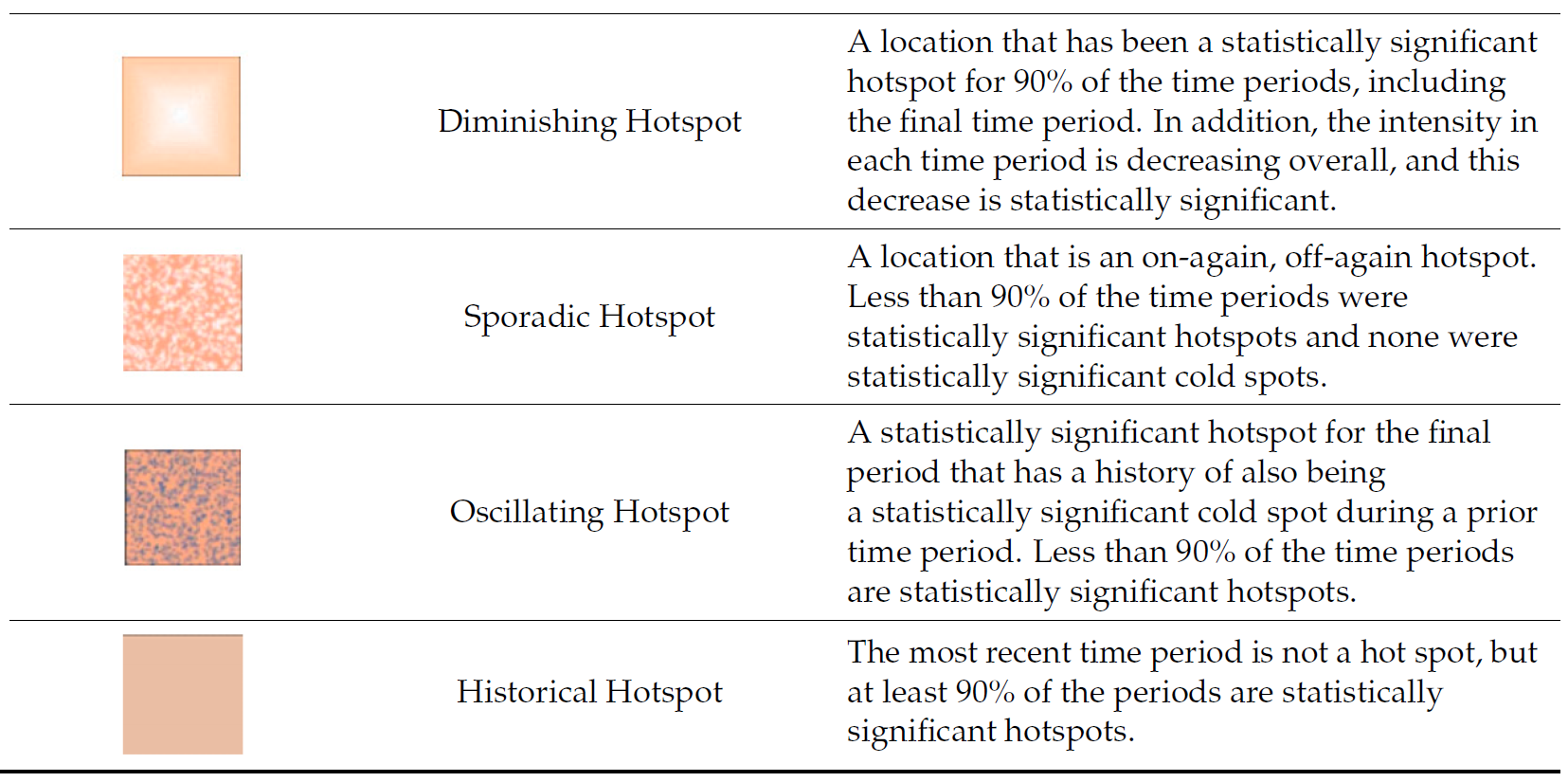

9.3 Interpretation of EHSA classes

Additional Notes

Note

Final Notes:

EHSA and the Mann-Kendall test complement each other by analyzing spatio-temporal data in different ways.

  • The Mann-Kendall test checks for monotonic trends without randomization or permutation, calculating a tau value that indicates trend strength.

  • On the other hand, EHSA includes simulations, providing more robust spatial analysis with its own tau and p-values, which may differ from those in the Mann-Kendall test. And we will have use the EHSA results to do our final hotspot classification.

By performing both, we gain deeper insights into spatio-temporal trends, accounting for both trend significance and spatial randomness.
